Part number: CDK1306
Manufacturer: Cadeka
File Size: 1.42MB
Download: 📄 Datasheet
Description: 40 MSPS 160mW A/D Converter

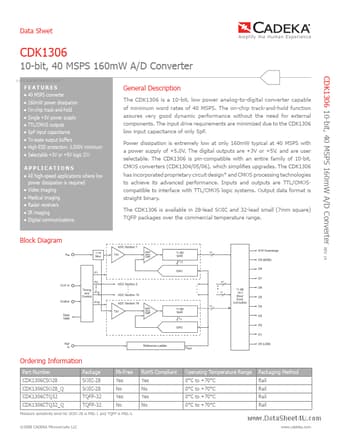

The CDK1306 is a 10-bit, low power analog-to-digital converter capable of minimum word rates of 40 MSPS. The on-chip track-and-hold function assures very good dynamic performance without the need for external components. The input drive requirements .
n 40 MSPS converter n 160mW power dissipation n On-chip track-and-hold n Single +5V power supply n TTL/CMOS outputs n 5pF input capacitance n Tri-state output buff.
n All high-speed applications where low power dissipation is required n Video imaging n Medical imaging n Radar.
Image gallery
