UPG2024TQ Datasheet, Switches, California Eastern Labs

UPG2024TQ Features

  • Switches
  • OPERATING FREQUENCY: f = 4.8 to 5.85 GHz
  • LOW INSERTION LOSS: LINS = 1.2 dB TYP. @ f = 4.8 to 5.85 GHz
  • HANDLING POWER: Pin (0.1 dB) = +32 dBm TYP. @ f = 4.8

PDF File Details

Part number:

UPG2024TQ

Manufacturer:

California Eastern Labs

File Size:

575.07kb

Download:

📄 Datasheet

Description:

Necs gaas mmic dpdt switches. NEC's UPG2024TQ is a GaAs MMIC DPDT switch for 5 GHz band wireless LAN. Low insertion loss and high handling power contribute to user

Datasheet Preview: UPG2024TQ 📥 Download PDF (575.07kb)

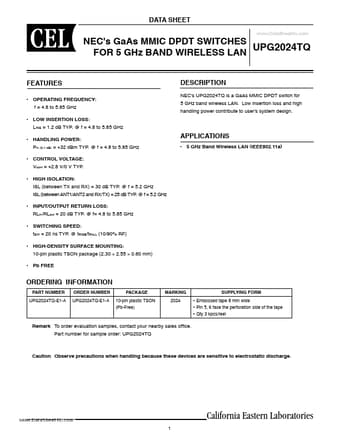

Page 2 of UPG2024TQ Page 3 of UPG2024TQ

UPG2024TQ Application

  • Applications
  • 5 GHz Band Wireless LAN (IEEE802.11a) ORDERING INFORMATION PART NUMBER UPG2024TQ-E1-A ORDER NUMBER UPG2024TQ-E1-A PACKAGE 10
