CLM2815 Datasheet - Calogic LLC

CLM2815 1.5A Low Dropout Voltage Regulator Adjustable & Fixed Output Fast Response

Calogic’s CLM2815 is a low power 1.5A adjustable and fixed voltage regulator. The device requires 2 external resistors to set the output for the adjustable version. The CLM2815 has been designed for low voltage applications that require lower dropout and faster transient responses. The device is wel.

CLM2815 Datasheet (84.63 KB)

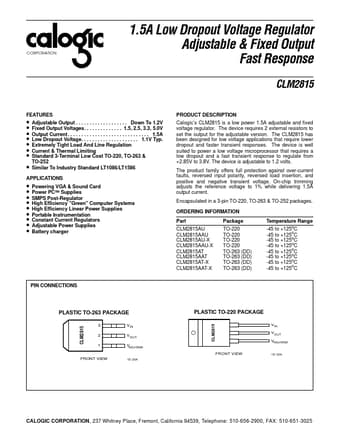

Preview of CLM2815 PDF

Datasheet Details

Part number:

CLM2815

Manufacturer:

Calogic LLC

File Size:

84.63 KB

Description:

1.5a low dropout voltage regulator adjustable & fixed output fast response.
