CLM4041 Datasheet - Calogic LLC

Precision Micropower Bandgap Shunt Reference

CLM4041 General Description

The CLM4041 is a two terminal precision voltage reference with thermal stability guaranteed over temperature, a typical dynamic impedance of 0.25Ω and very sharp turn-on characteristics. The device has a fixed output of 1.225V for input currents between 60µA to 20mA and is an excellent choice for ba.

CLM4041 Datasheet (32.40 KB)

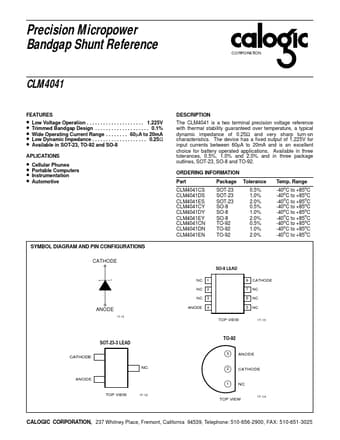

Preview of CLM4041 PDF

Datasheet Details

Part number:

CLM4041

Manufacturer:

Calogic LLC

File Size:

32.40 KB

Description:

Precision micropower bandgap shunt reference.
