CWB211, 100MHz CMOS/DMOS Wideband Analog Switch

100MHz CMOS/DMOS Wideband Analog Switch CORPORATION CWB211 .
The Calogic CWB211 offers designers high performance at a low cost.

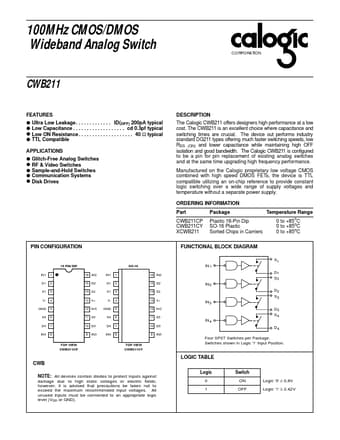

datasheet Preview Page 1 from Datasheet4u.com

CWB211_CalogicLLC.pdf

CWB211 Datasheet Preview — Preview of CWB211 PDF

Datasheet Details

Part number:

CWB211

Manufacturer:

Calogic LLC

File Size:

52.30 KB

Description:

100MHz CMOS/DMOS Wideband Analog Switch

Applications

* FUNCTIONAL BLOCK DIAGRAM S1 16 PIN DIP IN1 D1 S1 VGND S4 D4 IN4 1 2 3 4 5 6 7 8 TOP VIEW CWB211CP 16 IN2 15 D2 14 S2 13 V+ 12 N/C 11 S3 10 D3 9 IN3 IN1 D1 S1 VGND S4 D4 IN4 1 2 3 4 5 6 7 8 SO-16 16 IN2 15 D2 14 S2 13 V+ 12 N/C 11 S3 10 D3 9 TOP VIEW CWB211CY IN3 IN 1 D1 S2 IN 2 D2 S3 IN 3 D3 S4
