CSMT1206, CSMT1003-X Datasheet - Canopus Electronics

CSMT1206 SMD Magnetic Transducer

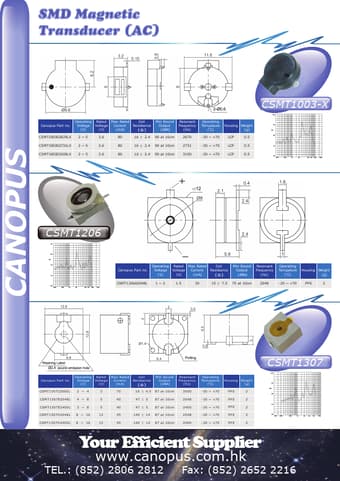

www.DataSheet.co.kr SMD Magnetic Transducer (AC) CSMT1003-X Canopus Part no. CSMT1003D2670LX CSMT1003D2731LX CSMT1003D3100LX Operating Voltage (V) 2~5 2~5 2~5 Rated Max Rated Voltage Current (V) (mA) 3.6 3.6 3.6 80 80 80 Coil Resistance 16 ± 2.4 16 ± 2.4 16 ± 2.4 Min Sound Output (dBA) 90 at 10cm 90 at 10cm 90 at 10cm Resonant Frequency (Hz) 2670 2731 3100 Operating Tempature (o C) -30 ~ +70 -30 ~ +70 -30 ~ +70 Housing Weight (g) LCP LCP LCP 0.5 0.5 0.5 CANOPUS CSMT1206 Operating Volt.

CSMT1003-X_CanopusElectronics.pdf

This datasheet PDF includes multiple part numbers: CSMT1206, CSMT1003-X. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CSMT1206, CSMT1003-X

Manufacturer:

Canopus Electronics

File Size:

853.12 KB

Description:

Smd magnetic transducer.

Note:

This datasheet PDF includes multiple part numbers: CSMT1206, CSMT1003-X.
Please refer to the document for exact specifications by model.
