PMB01 - Timers Multifunction

Datasheet Summary

Description

Multi-voltage timer with 7 knob selectable functions and 7 knob selectable time ranges within 0.1s and 100h.

For mounting on DINrail (DMB01) or Plug-in (PMB01).

Carlo Gavazzi

📥 Download Datasheet

Datasheet Details

Part number	PMB01
Manufacturer	Carlo Gavazzi
File Size	146.60 KB
Description	Timers Multifunction
Datasheet	PMB01 Datasheet
Additional preview pages of the PMB01 datasheet.

📁 Similar Datasheet

PMB-2240 - GSM Transmitter (Siemens)
PMB1704120 - Metallized polypropylene film capacitor (ETC)
PMB1704120 - Metallized polypropylene film capacitor (ETC)
PMB1704200 - Metallized polypropylene film capacitor (ETC)
PMB1704250 - Metallized polypropylene film capacitor (ETC)
PMB1704300 - Metallized polypropylene film capacitor (ETC)
PMB1704350 - Metallized polypropylene film capacitor (ETC)
PMB1704400 - Metallized polypropylene film capacitor (ETC)
PMB1704470 - Metallized polypropylene film capacitor (ETC)
PMB1704560 - Metallized polypropylene film capacitor (ETC)

Other Datasheets by Carlo Gavazzi

Full PDF Text Transcription

Click to expand full text

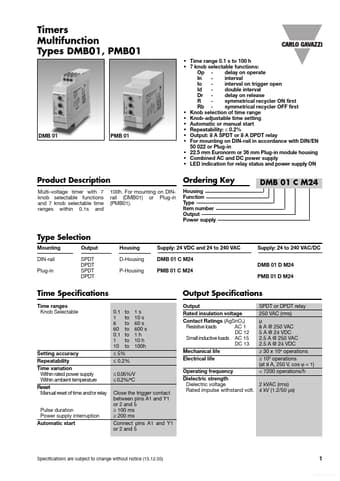

Timers Multifunction Types DMB01, PMB01 • Time range 0.1 s to 100 h • 7 knob selectable functions: Op delay on operate In interval Io interval on trigger open Id double interval Dr delay on release R symmetrical recycler ON first Rb symmetrical recycler OFF first • Knob selection of time range • Knob-adjustable time setting • Automatic or manual start • Repeatability: ≤ 0.2% • Output: 8 A SPDT or 8 A DPDT relay • For mounting on DIN-rail in accordance with DIN/EN 50 022 or Plug-in • 22.5 mm Euronorm or 36 mm Plug-in module housing • Combined AC and DC power supply • LED indication for relay status and power supply ON DMB 01 PMB 01 Product Description Multi-voltage timer with 7 knob selectable functions and 7 knob selectable time ranges within 0.1s and 100h.
