CAT5111 - 100-Tap Digitally Programmable Potentiometer

Catalyst Semiconductor

📥 Download Datasheet

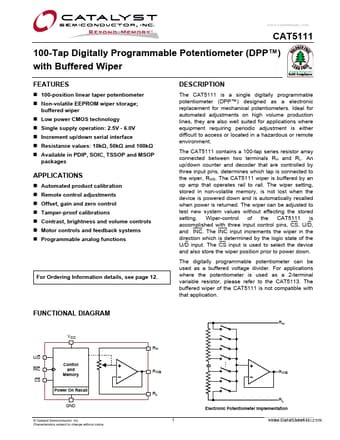

CAT5111 Datasheet Preview — Preview of CAT5111 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CAT5111
Manufacturer	Catalyst Semiconductor
File Size	301.85 KB
Description	100-Tap Digitally Programmable Potentiometer
Datasheet	CAT5111_CatalystSemiconductor.pdf

CAT5111 Product details

Description

The CAT5111 is a single digitally programmable potentiometer (DPP™) designed as a electronic replacement for mechanical potentiometers.

Features

100-position linear taper potentiometer.
Non-volatile EEPROM wiper storage; buffered wiper.
Low power CMOS technology.
Single supply operation: 2.5V - 6.0V.
Increment up/down serial interface.
Resistance values: 10kΩ, 50kΩ and 100kΩ.
Available in PDIP, SOIC, TSSOP and MSOP packages.
