CAT5122 - 16-Tap MiniPot TM Digitally Programmable Potentiometers

This page provides the datasheet information for the CAT5122, a member of the CAT5120 16-Tap MiniPot TM Digitally Programmable Potentiometers family.

Description

CAT5120/5121/5122 linear-taper digitally programmable potentiometers perform the same function as a mechanical potentiometer or a variable resistor.

📥 Download Datasheet

Datasheet preview – CAT5122

Datasheet Details

Part number CAT5122
Manufacturer Catalyst Semiconductor
File Size 653.35 KB
Description 16-Tap MiniPot TM Digitally Programmable Potentiometers
Datasheet download datasheet CAT5122 Datasheet
Additional preview pages of the CAT5122 datasheet.

📁 Similar Datasheet

  • CAT5122 - 16-Tap MiniPot Digitally Programmable Potentiometers (ON Semiconductor)
  • CAT5120 - 16-Tap MiniPot Digitally Programmable Potentiometers (ON Semiconductor)
  • CAT5121 - 16-Tap MiniPot Digitally Programmable Potentiometers (ON Semiconductor)
  • CAT5123 - 32-tap Digital Potentiometers (ON Semiconductor)
  • CAT5124 - 32-tap Digital Potentiometers (ON Semiconductor)
  • CAT5125 - 32-tap Digital Potentiometers (ON Semiconductor)
  • CAT5126 - One-time Digital 32-tap Potentiometer (ON Semiconductor)
  • CAT5127 - 32-tap Digital Potentiometers (ON Semiconductor)
  • CAT5128 - 32-Tap Digital Up/Down Control Potentiometer (ON Semiconductor)
  • CAT5129 - 32-tap Digital Potentiometers (ON Semiconductor)
Other Datasheets by Catalyst Semiconductor
  • CAT512 - 8-Bit Dual Digital POT with Independent Reference Inputs
  • CAT5120 - 16-Tap MiniPot TM Digitally Programmable Potentiometers
  • CAT5121 - 16-Tap MiniPot TM Digitally Programmable Potentiometers
  • CAT5123 - (CAT5110 - CAT5125) Digitally Programmable Potentiometers
  • CAT5124 - (CAT5110 - CAT5125) Digitally Programmable Potentiometers
  • CAT5125 - (CAT5110 - CAT5125) Digitally Programmable Potentiometers
  • CAT5126 - One-Time Digitally Programmable 32 Tap Potentiometer
  • CAT5127 - (CAT5127 / CAT5129) Digitally Programmable Potentiometers

Full PDF Text Transcription

Click to expand full text

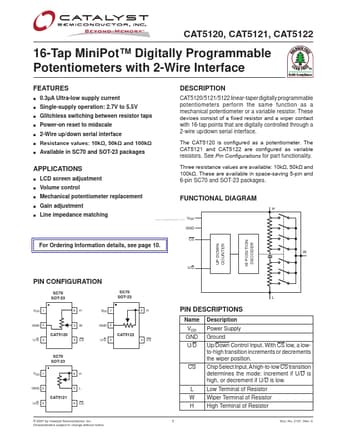

CAT5120, CAT5121, CAT5122 16-Tap MiniPot™ Digitally Programmable Potentiometers with 2-Wire Interface Features ■ ■ ■ ■ ■ ■ ■ DEscription CAT5120/5121/5122 linear-taper digitally programmable potentiometers perform the same function as a mechanical potentiometer or a variable resistor. These devices consist of a fixed resistor and a wiper contact with 16-tap points that are digitally controlled through a 2-wire up/down serial interface. The CAT5120 is configured as a potentiometer. The CAT5121 and CAT5122 are configured as variable resistors. See Pin Configurations for part functionality. Three resistance values are available: 10kΩ, 50kΩ and 100kΩ. These are available in space-saving 5-pin and 6-pin SC70 and SOT-23 packages. 0.3µA Ultra-low supply current Single-supply operation: 2.
