GL5528 Datasheet | CdS

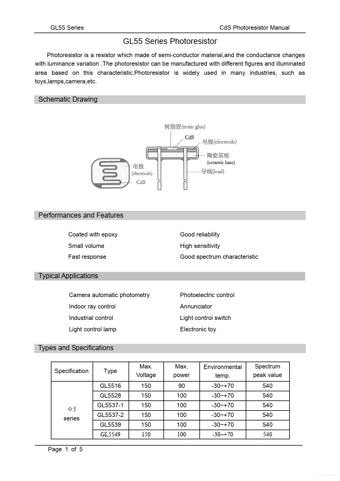

Features Coated with epoxy Small volume Fast response Good reliability High sensitivity Good spectrum characteristic Typical Applications Camera automatic photometry Indoor ray control Industrial control Light control lamp Photoelectric control Annunciator Light control switch Electronic toy Types and Specifications Specification Type GL5516 GL5528 Φ5 series GL5537-1 GL5537-2 GL5539 GL5549 Page 1 of 5 Max. Voltage 150 150 150 150 150 150 Max. power 90 100 100 100 100 100 Environmental temp. -30~+70 -30~+70 -30~+70 -30~+70 -30~+70 -30~+70 Spectrum peak value 540 540 540 540 540 540 Free Datasheet http://../ GL55 Series Light resistance (10Lux) (KΩ) 5-10 10-20 Φ5 series 20-30 30-50 50-100 100-200 Cd S Photoresistor Manual Response time (ms) Increase 0.5 0.6 0.6 0.7 0.8 0.9 30 20 20 20 20 20 Decrease 30 30 30 30 30 30 Specification Dark resistance (MΩ) 0.5 1 2 3 5 10 Illuminance resistance Fig. No. 2 3 4 4 5 6 Test Conditions Max. external voltage: Maximum voltage to be continuously given to ponent in the dark. Dark resistance: Refer to the resistance ten seconds after the 10Lux light is shut up. Max. power consumption: Maximum power at the environmental temperature 25℃. Irradiated by 400-600Lux light for two hours, then test with 10Lux under standard light source A(as colour temperature 2856K). γvalue: Logarithm of the ratio of the standard resistance value under 10Lux and that under 100Lux. Light resistance: γ= Lg(R10/R100) Lg(100/10) =Lg(R10/R100) R10,R100 are the resistances under 10Lux and 100Lux respectively. Page 2 of 5 Free Datasheet http://../ GL55 Series Cd S Photoresistor Manual Main Characteristics Curve and Dimensions Specification unit: mm Relative Resistance (%) Temperature (℃) Temperature-Property...
