CMPT2907A, PNP SILICON TRANSISTOR

CMPT2907A SURFACE MOUNT SILICON PNP TRANSISTOR SOT-23 CASE w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR CMPT2907A is a PNP silicon transistor manufactured by the epitaxial planar process, epoxy molded in a surface mount package.

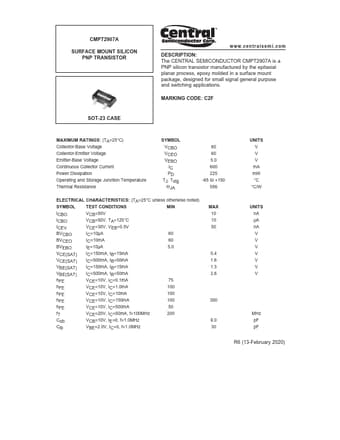

datasheet Preview Page 1 from Datasheet4u.com

CMPT2907A_CentralSemiconductorCorp.pdf

CMPT2907A Datasheet Preview — Preview of CMPT2907A PDF

Datasheet Details

Part number:

CMPT2907A

Manufacturer:

Central Semiconductor ↗ Corp

File Size:

296.32 KB

Description:

PNP SILICON TRANSISTOR

Applications

* MARKING CODE: C2F MAXIMUM RATINGS: (TA=25°C) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance SYMBOL VCBO VCEO VEBO IC PD TJ, Tstg ΘJA 60 60 5.0 600 225 -65 to +150 5
