1N4177B, 1N4158B, SILICON ZENER DIODES

1N4158B THRU 1N4186B SILICON ZENER DIODES 1.0 WATT, 6.8 THRU 100 VOLT 5% TOLERANCE Central w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR 1N4158B series silicon Zener diode is a highly reliable voltage regulator designed for use in industrial, commercial, enter.

1N4158B-CentralSemiconductor.pdf

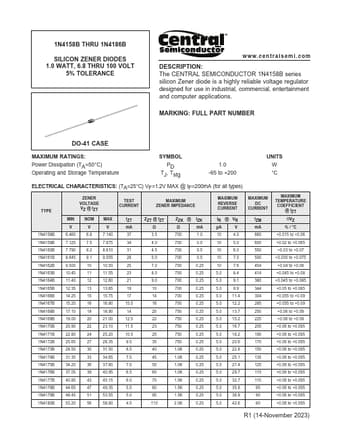

1N4177B Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N4177B, 1N4158B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1N4177B, 1N4158B

Manufacturer:

Central Semiconductor ↗

File Size:

356.99 KB

Description:

SILICON ZENER DIODES

Note:

This datasheet PDF includes multiple part numbers: 1N4177B, 1N4158B.
Please refer to the document for exact specifications by model.

Applications

* MARKING: FULL PART NUMBER DO-41 CASE MAXIMUM RATINGS: Power Dissipation (TA=50°C) Operating and Storage Temperature SYMBOL UNITS PD 1.0 W TJ, Tstg -65 to +200 °C ELECTRICAL CHARACTERISTICS: (TA=25°C) VF=1.2V MAX @ IF=200mA (for all types) TYPE 1N4158B 1N4159B 1N4160B 1N4161B 1N4162B 1N
