1N4678C ZENER DIODES

📥 Download Datasheet Datasheet Preview Page 1

Description

1N4678C THRU 1N4717C SILICON ZENER DIODE LOW LEVEL 1.8 VOLT THRU 43 VOLT 500mW, 2% TOLERANCE w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR 1N4678C series devices are silicon Zener diodes designed for applications requiring an extremely low operating current (50μ.

📥 Download Datasheet

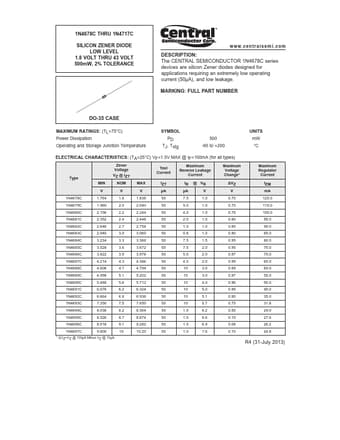

Preview of 1N4678C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* requiring an extremely low operating current (50μA), and low leakage. MARKING: FULL PART NUMBER DO-35 CASE MAXIMUM RATINGS: (TL=75°C) Power Dissipation Operating and Storage Junction Temperature SYMBOL PD TJ, Tstg 500 -65 to +200 UNITS mW °C ELECTRICAL CHARACTERISTICS: (TA=25°C) VF=1.5V MAX @
