1N5188 - GLASS PASSIVATED SILICON RECTIFIER

Datasheet Summary

Description

The CENTRAL SEMICONDUCTOR 1N5188 Series are silicon rectifiers mounted in a hermetically sealed, glass passivated package, designed for general purpose applications where fast reverse recovery times are required.

📥 Download Datasheet

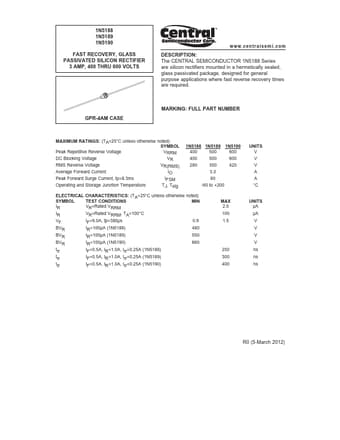

Datasheet preview – 1N5188

Datasheet Details

Part number 1N5188
Manufacturer Central Semiconductor
File Size 153.18 KB
Description GLASS PASSIVATED SILICON RECTIFIER
Datasheet download datasheet 1N5188 Datasheet
Additional preview pages of the 1N5188 datasheet.

📁 Similar Datasheet

  • 1N5188 - FAST RECOVERY GLASS RECTIFIERS (Microsemi)
  • 1N5188 - FAST RECOVERY RECTIFIERS (SENSITRON SEMICONDUCTOR)
  • 1N5188 - FAST RECOVERY RECTIFIERS DIODES (Digitron Semiconductors)
  • 1N5181 - High Voltage Rectifier (Microsemi)
  • 1N5181 - HIGH VOLTAGE RECTIFIERS (Digitron Semiconductors)
  • 1N5182 - High Voltage Rectifier (Microsemi)
  • 1N5182 - HIGH VOLTAGE RECTIFIERS (Digitron Semiconductors)
  • 1N5183 - High Voltage Rectifier (Microsemi)
  • 1N5183 - HIGH VOLTAGE RECTIFIERS (Digitron Semiconductors)
  • 1N5184 - High Voltage Rectifier (Microsemi)
Other Datasheets by Central Semiconductor
  • 1N5189 - GLASS PASSIVATED SILICON RECTIFIER
  • 1N5190 - GLASS PASSIVATED SILICON RECTIFIER
  • 1N5051A - Zener Diodes
  • 1N5059 - GLASS PASSIVATED SILICON RECTIFIERS
  • 1N5060 - GLASS PASSIVATED SILICON RECTIFIERS
  • 1N5061 - GLASS PASSIVATED SILICON RECTIFIERS
  • 1N5062 - GLASS PASSIVATED SILICON RECTIFIERS
  • 1N5221B - SILICON ZENER DIODES

Full PDF Text Transcription

Click to expand full text
1N5188 1N5189 1N5190 FAST RECOVERY, GLASS PASSIVATED SILICON RECTIFIER 3 AMP, 400 THRU 600 VOLTS w w w. c e n t r a l s e m i . c o m DESCRIPTION: The CENTRAL SEMICONDUCTOR 1N5188 Series are silicon rectifiers mounted in a hermetically sealed, glass passivated package, designed for general purpose applications where fast reverse recovery times are required. GPR-4AM CASE MARKING: FULL PART NUMBER MAXIMUM RATINGS: (TA=25°C unless otherwise noted) SYMBOL Peak Repetitive Reverse Voltage VRRM DC Blocking Voltage VR RMS Reverse Voltage VR(RMS) Average Forward Current IO Peak Forward Surge Current, tp=8.3ms IFSM Operating and Storage Junction Temperature TJ, Tstg 1N5188 1N5189 1N5190 400 500 600 400 500 600 280 350 420 3.
