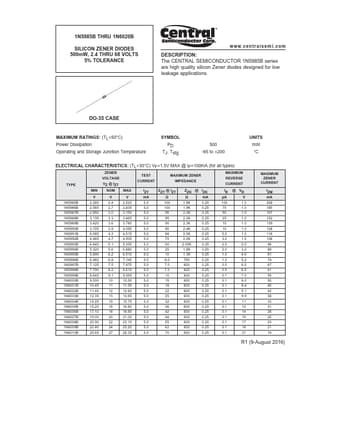

1N5985B THRU 1N6020B
SILICON ZENER DIODES 500mW, 2.4 THRU 68 VOLTS
5% TOLERANCE
w w w. c e n t r a l s e m i . c o m
DESCRIPTION: The CENTRAL SEMICONDUCTOR 1N5985B series are high quality silicon Zener diodes designed for low leakage applications.
DO-35 CASE
MAXIMUM RATINGS: (TL=50°C) Power Dissipation
Operating and Storage Junction Temperature
SYMBOL PD
TJ, Tstg
500 -65 to +200
UNITS mW °C
ELECTRICAL CHARACTERISTICS: (TL=30°C) VF=1.5V MAX @ IF=100mA (for all types)
TYPE
ZENER VOLTAGE VZ @ IZT
TEST CURRENT
MAXIMUM ZENER IMPEDANCE
MAXIMUM REVERSE CURRENT
MIN NOM MAX VVV
IZT
ZZT @ IZT
ZZK @ IZK
mA Ω Ω mA
IR @ VR μA V
1N5985B
2.280 2.4 2.520
5.0
100
1.8K
0.25
100
1.0
1N5986B
2.565 2.7 2.835
5.0
100
1.9K
0.25
75
1.0
1N5987B
2.850 3.0 3.150
5.0
95
2.0K
0.
