CLL4701, CLL4678 Datasheet - Central Semiconductor

CLL4701, CLL4678, SURFACE MOUNT LOW LEVEL SILICON ZENER DIODES

CLL4678 THRU CLL4717 SURFACE MOUNT LOW LEVEL SILICON ZENER DIODES 1.8 VOLTS THRU 43 VOLTS 500mW, 5% TOLERANCE w w w.c e n t r a l s e m i .c o m DE.
The CENTRAL SEMICONDUCTOR CLL4678 Series Silicon Low Level Zener Diode is a high quality voltage regulator designed for applications requiring an ext.

CLL4678-CentralSemiconductor.pdf

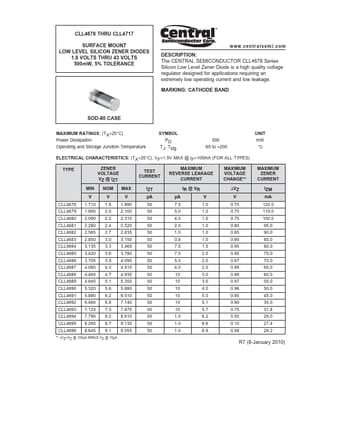

CLL4701 Datasheet Preview — This datasheet PDF includes multiple part numbers: CLL4701, CLL4678. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CLL4701, CLL4678

Manufacturer:

Central Semiconductor ↗

File Size:

134.14 KB

Description:

SURFACE MOUNT LOW LEVEL SILICON ZENER DIODES

Note:

This datasheet PDF includes multiple part numbers: CLL4701, CLL4678.
Please refer to the document for exact specifications by model.

Applications

* requiring an extremely low operating current and low leakage. MARKING: CATHODE BAND SOD-80 CASE MAXIMUM RATINGS: (TA=25°C) Power Dissipation Operating and Storage Junction Temperature SYMBOL PD TJ, Tstg 500 -65 to +200 UNIT mW °C ELECTRICAL CHARACTERISTICS: (TA=25°C), VF=1.5V MAX @ IF=100mA (F
