CLL4739A, CLL4728A, SURFACE MOUNT SILICON ZENER DIODE

CLL4728A THRU CLL4764A SURFACE MOUNT SILICON ZENER DIODE 1 WATT, 3.3 THRU 100 VOLTS w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR CLL4728A Series Silicon Zener Diode is a high quality voltage regulator for use in surface mount industrial, commercial, en.

CLL4728A-CentralSemiconductor.pdf

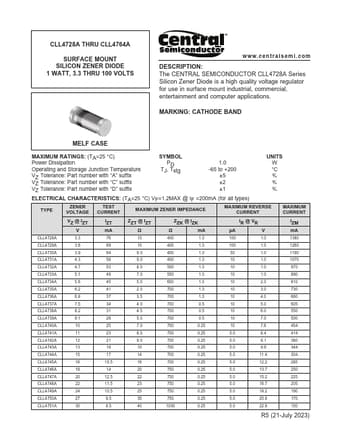

CLL4739A Datasheet Preview — This datasheet PDF includes multiple part numbers: CLL4739A, CLL4728A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CLL4739A, CLL4728A

Manufacturer:

Central Semiconductor ↗

File Size:

556.30 KB

Description:

SURFACE MOUNT SILICON ZENER DIODE

Note:

This datasheet PDF includes multiple part numbers: CLL4739A, CLL4728A.
Please refer to the document for exact specifications by model.

Applications

* MARKING: CATHODE BAND MELF CASE MAXIMUM RATINGS: (TA=25 °C) SYMBOL UNITS Power Dissipation PD 1.0 W Operating and Storage Junction Temperature TJ, Tstg -65 to +200 °C VZ Tolerance: Part number with “A” suffix ±5 % VZ Tolerance: Part number with “C” suffix ±2 % VZ Tolerance:
