CMHZ4614, SURFACE MOUNT LOW NOISE SILICON ZENER DIODE

CMHZ4614 THRU CMHZ4627 SURFACE MOUNT LOW NOISE SILICON ZENER DIODE 1.8 VOLTS THRU 6.2 VOLTS 500mW, 5% TOLERANCE w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR CMHZ4614 Series Silicon Zener Diode is a high quality voltage regulator designed for low leakage, low current and low noise.

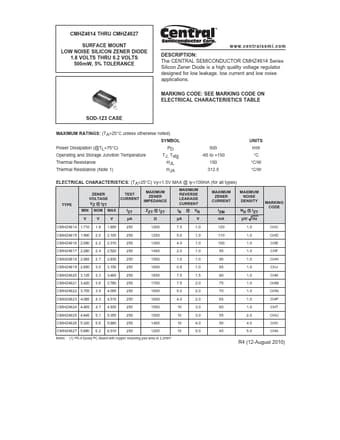

datasheet Preview Page 1 from Datasheet4u.com

CMHZ4614-CentralSemiconductor.pdf

CMHZ4614 Datasheet Preview — Preview of CMHZ4614 PDF

Datasheet Details

Part number:

CMHZ4614

Manufacturer:

Central Semiconductor ↗

File Size:

167.41 KB

Description:

SURFACE MOUNT LOW NOISE SILICON ZENER DIODE

Applications

* MARKING CODE: SEE MARKING CODE ON ELECTRICAL CHARACTERISTICS TABLE SOD-123 CASE MAXIMUM RATINGS: (TA=25°C unless otherwise noted) SYMBOL Power Dissipation (@TL=75°C) Operating and Storage Junction Temperature Thermal Resistance Thermal Resistance (Note 1) PD TJ, Tstg ΘJL ΘJA 500 -65 to +150 15
