CMPZDA3V6, CMPZDA2V4, SURFACE MOUNT DUAL / COMMON ANODE SILICON ZENER DIODES

CMPZDA2V4 THRU CMPZDA47V SURFACE MOUNT DUAL, COMMON ANODE SILICON ZENER DIODES 2.4 VOLTS THRU 47 VOLTS 350mW w w w.c e n t r a l s e m i .c o m DES.
The CENTRAL SEMICONDUCTOR CMPZDA2V4 series dual silicon Zener diode is a high quality voltage regulator, connected in a common anode configuration, f.

CMPZDA2V4-CentralSemiconductor.pdf

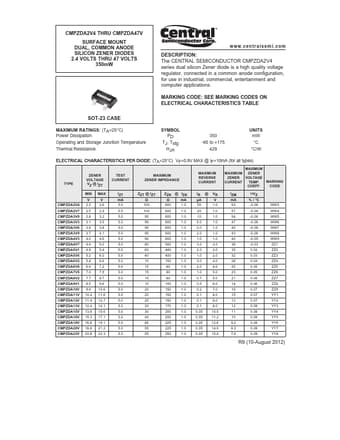

CMPZDA3V6 Datasheet Preview — This datasheet PDF includes multiple part numbers: CMPZDA3V6, CMPZDA2V4. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CMPZDA3V6, CMPZDA2V4

Manufacturer:

Central Semiconductor ↗

File Size:

206.87 KB

Description:

SURFACE MOUNT DUAL / COMMON ANODE SILICON ZENER DIODES

Note:

This datasheet PDF includes multiple part numbers: CMPZDA3V6, CMPZDA2V4.
Please refer to the document for exact specifications by model.

Applications

* MARKING CODE: SEE MARKING CODES ON ELECTRICAL CHARACTERISTICS TABLE SOT-23 CASE MAXIMUM RATINGS: (TA=25°C) Power Dissipation Operating and Storage Junction Temperature Thermal Resistance SYMBOL PD TJ, Tstg ΘJA 350 -65 to +175 429 UNITS mW °C °C/W ELECTRICAL CHARACTERISTICS PER DIODE: (TA=25°C
