CMZ5338B, CMZ5334B, HIGH POWER ZENER DIODE

CMZ5334B THRU CMZ5388B SURFACE MOUNT SILICON HIGH POWER ZENER DIODES 5.0 WATT, 3.6 THRU 200 VOLT ±5% TOLERANCE w w w.c e n t r a l s e m i .c o m D.
The CENTRAL SEMICONDUCTOR CMZ5334B series silicon Zener diodes are voltage regulators, manufactured in an epoxy molded surface mount package, and des.

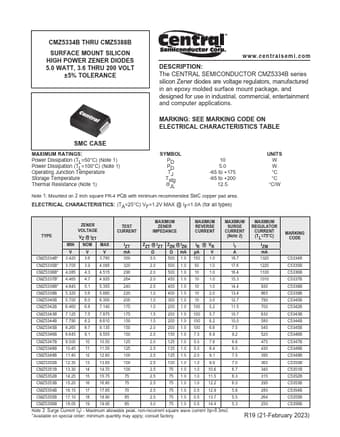

datasheet Preview Page 1 from Datasheet4u.com

CMZ5334B-CentralSemiconductor.pdf

CMZ5338B Datasheet Preview — This datasheet PDF includes multiple part numbers: CMZ5338B, CMZ5334B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CMZ5338B, CMZ5334B

Manufacturer:

Central Semiconductor ↗

File Size:

767.23 KB

Description:

HIGH POWER ZENER DIODE

Note:

This datasheet PDF includes multiple part numbers: CMZ5338B, CMZ5334B.
Please refer to the document for exact specifications by model.

Applications

* MARKING: SEE MARKING CODE ON ELECTRICAL CHARACTERISTICS TABLE SMC CASE MAXIMUM RATINGS: Power Dissipation (TL=50°C) (Note 1) Power Dissipation (TL=100°C) (Note 1) Operating Junction Temperature Storage Temperature Thermal Resistance (Note 1) SYMBOL UNITS PD 10 W PD 5.0 W TJ -65 to +17
