MJE13005, MJE13004 - NPN SILICON POWER TRANSISTOR

MJE13005 Description

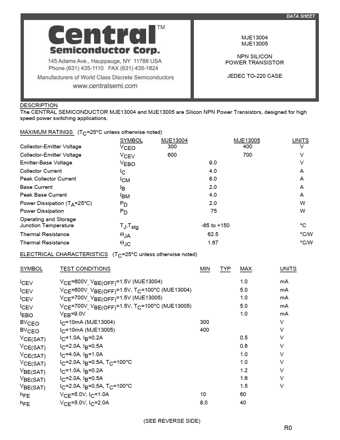

DATA SHEET MJE13004 MJE13005 NPN SILICON POWER TRANSISTOR JEDEC TO-220 CASE .
The CENTRAL SEMICONDUCTOR MJE13004 and MJE13005 are Silicon NPN Power Transistors, designed for high speed power switching applications.

MJE13005 Applications

* MAXIMUM RATINGS (TC=25°C unless otherwise noted) SYMBOL MJE13004 Collector-Emitter Voltage VCEO 300 Collector-Emitter Voltage VCEV 600 Emitter-Base Voltage VEBO Collector Current IC Peak Collector Current ICM Base Current IB Peak Base Current IBM Power Dissipation (TA=25°C) PD

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MJE13005, MJE13004. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Details

Part number
MJE13005, MJE13004
Manufacturer
Central Semiconductor ↗
File Size
71.19 KB
Datasheet
MJE13004-CentralSemiconductor.pdf
Description
NPN SILICON POWER TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: MJE13005, MJE13004.
Please refer to the document for exact specifications by model.
