MPQ2222 - QUAD TRANSISTORS

Datasheet Summary

Description

The CENTRAL SEMICONDUCTOR MPQ2222, MPQ2222A types are comprised of four independent Silicon NPN Transistors mounted in a 14 PIN DIP, designed for general purpose amplifier and switching applications.

Central

📥 Download Datasheet

Datasheet Details

Part number	MPQ2222
Manufacturer	Central
File Size	188.43 KB
Description	QUAD TRANSISTORS
Datasheet	MPQ2222 Datasheet

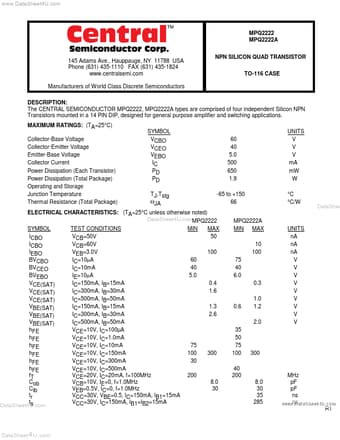

Additional preview pages of the MPQ2222 datasheet.
