K1570A 5V Voltage Controlled Crystal Oscillators

-55°C to +125°C; Air-to-Air; 100 cycles; 10 min. dwell 1500 g’s 20-2000 Hz; 0.06 inch; 15g’s; 3 planes 40°C; 90%-95% R.H.; 56 days 100°C to 0°C; Water-to-Water; 15 cycles 2 KV to 4 KV Threshold Solder dip; Meniscograph Criteria Mass spectro. 2 x 10-8 atmos. CC/sec He MIL-STD-202, Mtd 210D, Cond. C .

www.DataSheet4U.com K1570A Series 5V Voltage Controlled Crystal Oscillators Applications: Phase-Locked Loops (PLL’s); Clock Recovery; Reference Signal Tracking; Synthesizers; Frequency Modulation/Demodulation 14-pin DIL Package 1.0 to 52.0 MHz Frequency Range 0.5V to 4.5V Control Voltage ±25ppm Stability -40°C to 85°C Operating Temperature x. Ma x. Ma mm 8 0 13, m 7m 20, 0A Z K157.000 MH E CODE 46 TI DAT C mm 7,6 x. Ma PIN 1 E L E C T R I C A L S P E C I F I C AT I O N S Model.

K1570A Datasheet (441.59 KB)

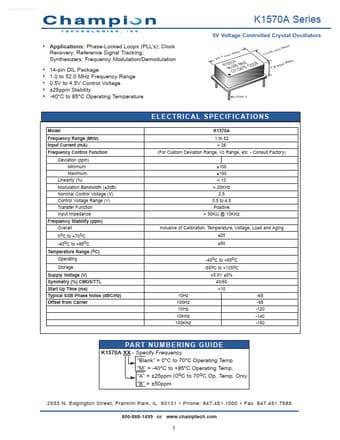

K1570A Datasheet Preview — Preview of K1570A PDF

Datasheet Details

Part number:

K1570A

Manufacturer:

Champion

File Size:

441.59 KB

Description:

5v voltage controlled crystal oscillators.
