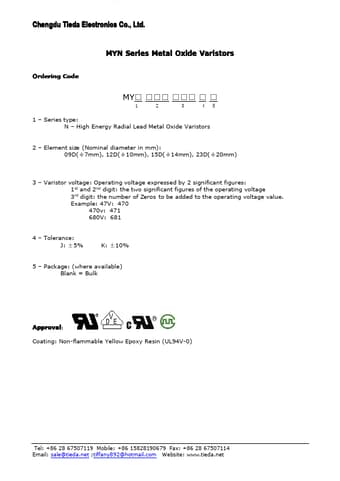

Chengdu Tieda Electronics Co., Ltd.
MYN Series Metal Oxide Varistors
Ordering Code
MY□ □□□ □□□ □ □
1 2 3 4 5
1 – Series type: N – High Energy Radial Lead Metal Oxide Varistors
2 – Element size (Nominal diameter in mm): 09D(φ7mm), 12D(φ10mm), 15D(φ14mm), 23D(φ20mm)
3 – Varistor voltage: Operating voltage expressed by 2 significant figures: 1st and 2nd digit: the two significant figures of the operating voltage 3rd digit: the number of Zeros to be added to the operating voltage value. Example: 47V: 470 470v: 471 680V: 681
4 – Tolerance: J: ±5%
K: ±10%
5 – Package: (where available) Blank = Bulk
Approval: Coating: Non-flammable Yellow Epoxy Resin (UL94V-0)
Tel: +86 28 67507119 Mobile: +86 15828190679 Fax: +86 28 67507114 Email: sale@tieda.
