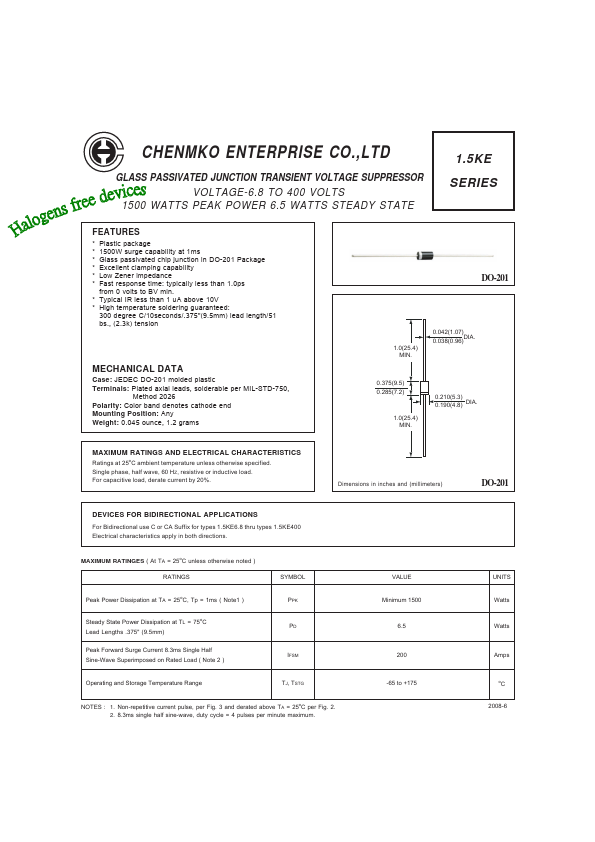

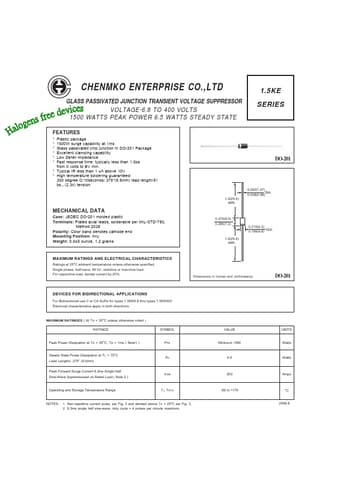

1.5KE170AGP, 1.5KE6.8GP Datasheet - Chenmko Enterprise

1.5KE170AGP, 1.5KE6.8GP, GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

CHENMKO ENTERPRISE CO.,LTD GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR VOLTAGE-6.8 TO 400 VOLTS 1500 WATTS PEAK POWER 6.5 WATTS STEADY STAT

Features

* Plastic package
* 1500W surge capability at 1ms
* Glass passivated chip junction in DO-201 Package
* Excellent clamping capability
* Low Zener lmpedance
* Fast response time: typically less than 1.0ps from 0 volts to BV min.
* Typical IR less than 1 uA above 10V
* H

Applications

* For Bidirectional use C or CA Suffix for types 1.5KE6.8 thru types 1.5KE400 Electrical characteristics apply in both directions. MAXIMUM RATINGES ( At TA = 25oC unless otherwise noted ) RATINGS Peak Power Dissipation at TA = 25oC, Tp = 1ms ( Note1 ) Steady State Power Dissipation at TL = 75oC Lead

1.5KE6.8GP-ChenmkoEnterprise.pdf
