S15D40PT, (S15D30PT - S15D60PT) SCHOTTKY BARRIER RECTIFIER

CHENMKO ENTERPRISE CO.,LTD SCHOTTKY BARRIER RECTIFIER VOLTAGE RANGE 30 - 60 Volts .

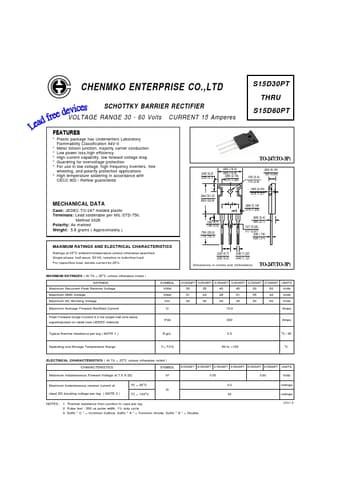

datasheet Preview Page 1 from Datasheet4u.com

S15D40PT_ChenmkoEnterprise.pdf

S15D40PT Datasheet Preview — Preview of S15D40PT PDF

Datasheet Details

Part number:

S15D40PT

Manufacturer:

Chenmko Enterprise

File Size:

127.77 KB

Description:

(S15D30PT - S15D60PT) SCHOTTKY BARRIER RECTIFIER

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Metal Silicon junction, majority carrier conduction
* Low power loss,high efficiency
* High current capability, low forward voltage drop
* Guardring for overvoltage protection
* For use in low v

Applications

* High temperature soldering in accordance with CECC 802 / Reflow guaranteed S15D30PT THRU S15D60PT CURRENT 15 Amperes TO-247(TO-3P) .245 (6.2) .225 (5.7) .645 (16.0) .625 (15.9) .085 (2.16) .075 (1.90) .203 (5.16) .193 (4.90) .135 (3.4) .115 (2.9) .840 (21.3) .820 (20.8) .093 (2.30) .076
