SR330PT, SR340PT - (SR320PT - SR360PT) SCHOTTKY BARRIER RECTIFIER

Chenmko Enterprise

📥 Download Datasheet

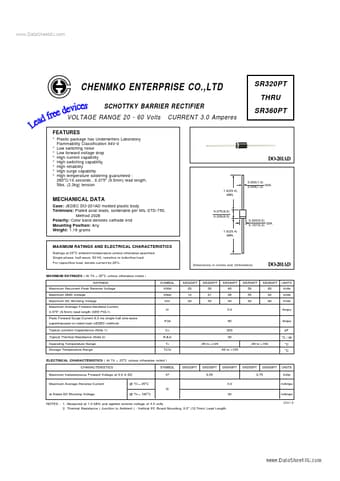

SR330PT Datasheet Preview — This datasheet PDF includes multiple part numbers: SR330PT, SR340PT. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

Datasheet Details

Part number: SR330PT, SR340PT
Manufacturer: Chenmko Enterprise
File Size: 101.34 KB
Datasheet: SR340PT_ChenmkoEnterprise.pdf
Description: (SR320PT - SR360PT) SCHOTTKY BARRIER RECTIFIER
Note: This datasheet PDF includes multiple part numbers: SR330PT, SR340PT.
Please refer to the document for exact specifications by model.

SR330PT Product details

Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Low switching noise.
Low forward voltage drop.
High current capability.
High switching capability.
High reliability.
High surge capability.
High temperature soldering guaranteed : 260oC/10 seconds , 0.375" (9.5mm) lead length, 5lbs. (2.3kg) tension 1.0(25.4) MIN. SR320PT THRU SR360PT.
