SBM23PT, SBM22PT (SBM22PT - SBM26PT) SCHOTTKY BARRIER RECTIFIER

SBM23PT Description

CHENMKO ENTERPRISE CO.,LTD SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE RANGE 20 - 60 Volts CURRENT 2.0 Amperes .

SBM23PT Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0

SBM23PT Applications

* Low profile package
* Built-in strain relief
* Metal silicon junction, majority carrier conduction
* Low power loss, high efficiency
* High current capability, low forward voltage drop
* High surge capability
* For use in low voltage high frequency inverters, free wheel

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SBM23PT, SBM22PT. Please refer to the document for exact specifications by model.

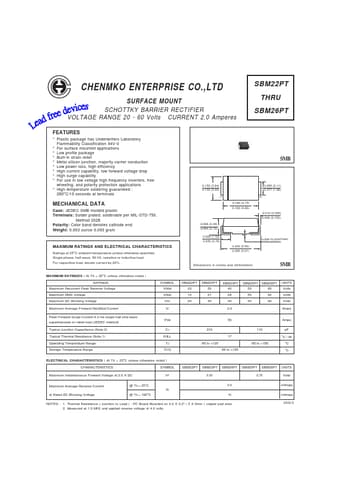

datasheet Preview Page 2

Datasheet Details

Part number
SBM23PT, SBM22PT
Manufacturer
Chenmko
File Size
134.69 KB
Datasheet
SBM22PT_Chenmko.pdf
Description
(SBM22PT - SBM26PT) SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SBM23PT, SBM22PT.
Please refer to the document for exact specifications by model.
