JTBM455CX28 Datasheet - Chequers Electronic

JTBM455CX28 Ceramic Discriminator

Chequers Electronic (China) Limited return to content Ceramic Discriminator (AM Applications) RoHS Compliant Directive 2002/95/EC REACH Compliant (15 SVHCs) Regulation (EC) No. 1907/2006 Dimension JTBM 6.0 Max. A JTBC 6.0±0.2 0.5±0.1 E D 4.2±0.2 6.3 Max. Tolerance: ±0.3mm Unit: mm B 0.15±0.05 C 6.6±0.3 1.5±0.3 Tolerance: ±0.3mm Unit: mm 1.0±0.1 3.1 Max. 1.15±0.2 3.7±0.2 Electrical Specifications of JTBM / JTBC Part Number Nominal Anti-Resonant Frequency (f.

JTBM455CX28 Datasheet (122.08 KB)

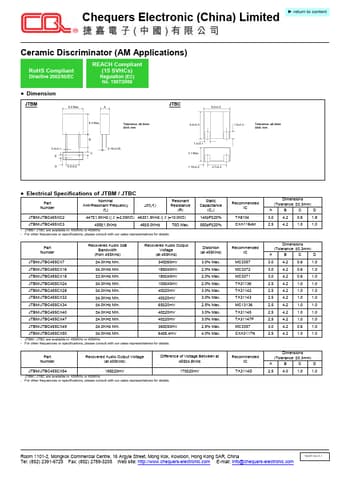

Preview of JTBM455CX28 PDF

Datasheet Details

Part number:

JTBM455CX28

Manufacturer:

Chequers Electronic

File Size:

122.08 KB

Description:

Ceramic discriminator.
