CS453, CS452 - (CS452 / CS453) 2.4A/4.4A Injector Solenoid Driver

CS453 Description

www.DataSheet4U.com CS452/453 CS452/453 2.4A/4.4A Injector Solenoid Driver .
The CS452/453 is a monolithic integrated circuit designed for medium current solenoid driver applications.

CS453 Features

* s Microprocessor Compatible Inputs s On-Chip Power Device 2.4A Peak, Typical CS-452 4.4A Peak, Typical CS453 s Low Thermal Resistance To Grounded Tab s 60V Peak Transient Voltage s Low Saturation Voltage s Operates Over a 4.5V to 24V Battery Range Absolute Maximum Ratings Power Supply Voltage (VCC)

CS453 Applications

* Its typical function is to supply full battery voltage to fuel injector(s) for rapid current rise, in order to produce positive injector opening. When load current reaches a preset level (2.4A for CS452, or 4.4A for CS453), the injector driver reduces the load current by a 4:1 ratio and operates as

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CS453, CS452. Please refer to the document for exact specifications by model.

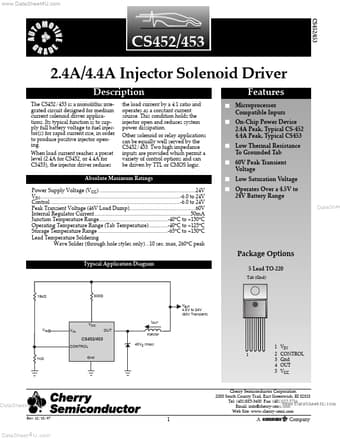

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CS453, CS452
Manufacturer
Cherry Semiconductor Corporation
File Size
332.92 KB
Datasheet
CS452_CherrySemiconductorCorporation.pdf
Description
(CS452 / CS453) 2.4A/4.4A Injector Solenoid Driver
Note
This datasheet PDF includes multiple part numbers: CS453, CS452.
Please refer to the document for exact specifications by model.
