CL160808, CL100505 - SMD Multilayer Ferrite Chip Inductors

CL160808 Description

SMD Multilayer Ferrite Chip Inductors - CL Series CL Series The SMD multi-layered ferrite chip inductors provide a cost-effective solution for densely.

CL160808 Features

* RoHS compliant
* High mounting density of compact circuit due to crosstalk elimination that results from a closed magnetic flux in a ferrite material
* Suitable for flow and re-flow soldering

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CL160808, CL100505. Please refer to the document for exact specifications by model.

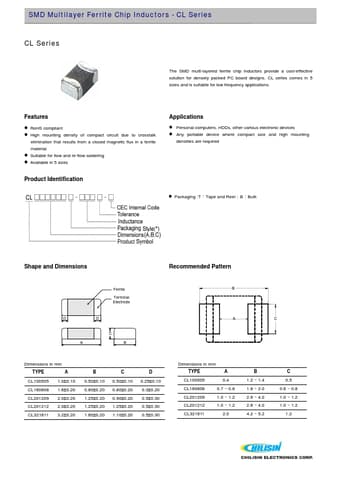

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CL160808, CL100505
Manufacturer
Chilisin Electronics
File Size
368.66 KB
Datasheet
CL100505-ChilisinElectronics.pdf
Description
SMD Multilayer Ferrite Chip Inductors
Note
This datasheet PDF includes multiple part numbers: CL160808, CL100505.
Please refer to the document for exact specifications by model.
