DMI0808, DMI0807 Leaded Power Chokes

Chilisin Electronics

Description

Leaded Power Chokes DMI Series DMI Series .

📥 Download Datasheet

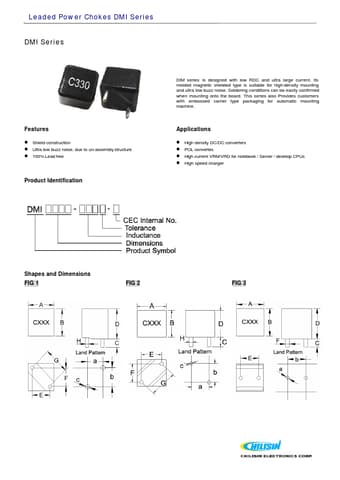

DMI0808 Datasheet Preview — This datasheet PDF includes multiple part numbers: DMI0808, DMI0807. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: DMI0808, DMI0807
Manufacturer: Chilisin Electronics
File Size: 165.76 KB
Datasheet: DMI0807-ChilisinElectronics.pdf
Description: Leaded Power Chokes
Note: This datasheet PDF includes multiple part numbers: DMI0808, DMI0807.
Please refer to the document for exact specifications by model.

Features

* l Shield construction l Ultra low buzz noise, due to un-assembly structure l 100% Lead free Product Identification DIM series is designed with low RDC and ultra large current. Its molded magnetic shielded type is suitable for high-density mounting and ultra low buzz noise. Soldering conditions can

Applications

* l High density DC/DC converters l POL convertes l High current VRM/VRD for notebook / Server / desktop CPUs l High speed charger Shapes and Dimensions FIG 1 FIG 2 FIG 3 Leaded Power Chokes DMI Series Dimensions in mm TYPE FIG DMI0807-1R0M -N 3 A 8.5±0.5 B 8.5±0.5 C 3.4±0.5 D 7.5Max E 5.
