MHCD322510-1R0N-A8T, MHCD, Molding Power Choke

Molding Power Choke * MHCD Series MHCD Series Chilisin’s MHCD Series provides high current and low DCR in compact sizing with magnetically sh.

MHCD_ChilisinElectronics.pdf

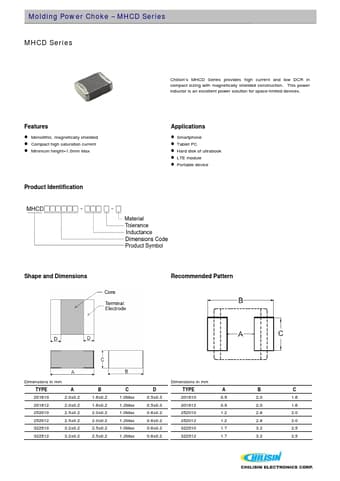

MHCD322510-1R0N-A8T Datasheet Preview — This datasheet PDF includes multiple part numbers: MHCD322510-1R0N-A8T, MHCD. Please refer to the document for exact specifications by model.

MHCD322510-1R0N-A8T Datasheet Preview Page 2

MHCD322510-1R0N-A8T Datasheet Preview Page 3

Datasheet Details

Part number:

MHCD322510-1R0N-A8T, MHCD

Manufacturer:

Chilisin Electronics

File Size:

364.51 KB

Description:

Molding Power Choke

Note:

This datasheet PDF includes multiple part numbers: MHCD322510-1R0N-A8T, MHCD.
Please refer to the document for exact specifications by model.

Features

* Monolithic, magnetically shielded
* Compact high saturation current

Applications

* Smartphone
* Tablet PC
* Hard disk of ultrabook
* LTE module
* Portable device Product Identification http://www. DataSheet4U. net/ Shape and Dimensions Recommended Pattern Dimensions in mm TYPE 201610 201612 252010 252012 322510 322512 A 2.0±0.2 2.0±0.2 2.5±0.2 2.5±0.2 3.2±
