CL-160808 - SMD Multi-Layers Chip Inductors

📥 Download Datasheet

Datasheet preview – CL-160808

Datasheet Details

Part number CL-160808
Manufacturer Chilisin
File Size 322.24 KB
Description SMD Multi-Layers Chip Inductors
Datasheet download datasheet CL-160808 Datasheet
Additional preview pages of the CL-160808 datasheet.

📁 Similar Datasheet

  • CL-165 - ULTRA SMALL CHIP LEDS FOR USE IN VARIOUS ELECTRONIC PRODUCTS (ETC)
  • CL-150 - ULTRA SMALL CHIP LEDS FOR USE IN VARIOUS ELECTRONIC PRODUCTS (ETC)
  • CL-155 - ULTRA SMALL CHIP LEDS FOR USE IN VARIOUS ELECTRONIC PRODUCTS (ETC)
  • CL-170 - ULTRA SMALL CHIP LEDS FOR USE IN VARIOUS ELECTRONIC PRODUCTS (ETC)
  • CL-170 - Miniature Chip LED (Citizen Electronics)
  • CL-190 - ULTRA SMALL CHIP LEDS FOR USE IN VARIOUS ELECTRONIC PRODUCTS (ETC)
  • CL-190 - Chip LED / Optoelectronic (Citizen Electronics)
  • CL-191 - ULTRA SMALL CHIP LEDS FOR USE IN VARIOUS ELECTRONIC PRODUCTS (ETC)
  • CL-191 - (CL-191xx) Miniature Chip LED (ETC)
  • CL-191D - (CL-191xx) Miniature Chip LED (ETC)
Other Datasheets by Chilisin

Full PDF Text Transcription

Click to expand full text

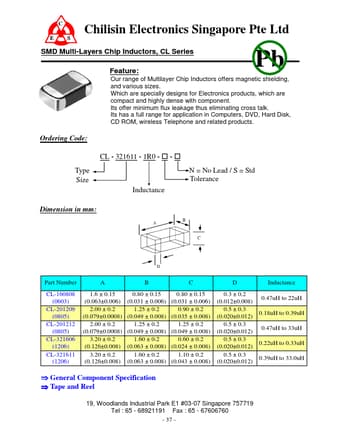

C Chilisin Electronics Singapore Pte Ltd ES SMD Multi-Layers Chip Inductors, CL Series Pb Feature: Our range of Multilayer Chip Inductors offers magnetic shielding, and various sizes. Which are specially designs for Electronics products, which are compact and highly dense with component. Its offer minimum flux leakage thus eliminating cross talk. Its has a full range for application in Computers, DVD, Hard Disk, CD ROM, wireless Telephone and related products. Ordering Code: Type Size CL - 321611 - 1R0 - Inductance N = No Lead / S = Std Tolerance Dimension in mm: AB C D Part Number A B C D Inductance CL-160808 (0603) CL-201209 (0805) CL-201212 (0805) CL-321606 (1206) CL-321611 (1206) 1.6 ± 0.15 (0.063±0.006) 2.00 ± 0.2 (0.079±0.0008) 2.00 ± 0.2 (0.079±0.0008) 3.
