HEI201210A-1R0M-Q8, HEI201210A-R24M-Q8 Datasheet - Chilisin

HEI201210A-1R0M-Q8, HEI201210A-R24M-Q8, Molding Power Inductors

Molding Power Inductors * HEI Series HEI Series Power inductor takes an important part in the efficiency performance of DC/DC converter, and .

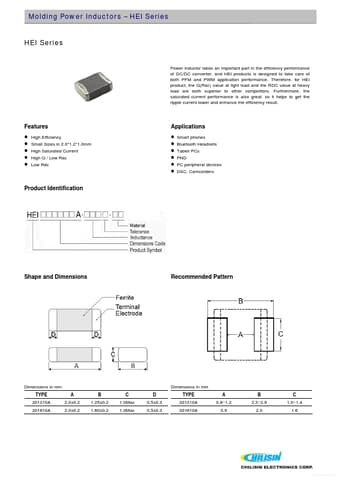

datasheet Preview Page 1 from Datasheet4u.com

HEI201210A-R24M-Q8-Chilisin.pdf

HEI201210A-1R0M-Q8 Datasheet Preview — This datasheet PDF includes multiple part numbers: HEI201210A-1R0M-Q8, HEI201210A-R24M-Q8. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HEI201210A-1R0M-Q8, HEI201210A-R24M-Q8

Manufacturer:

Chilisin

File Size:

295.57 KB

Description:

Molding Power Inductors

Note:

This datasheet PDF includes multiple part numbers: HEI201210A-1R0M-Q8, HEI201210A-R24M-Q8.
Please refer to the document for exact specifications by model.

Features

* High Efficiency
* Small Sizes in 2.0
* 1.2
* 1.0mm
* High Saturated Current
* High Q / Low Rac

Applications

* Smart phones
* Bluetooth Headsets
* Tablet PCs
* PND
* PC peripheral devices
* DSC, Camcorders Product Identification Shape and Dimensions Recommended Pattern Dimensions in mm TYPE 201210A 201610A A 2.0±0.2 2.0±0.2 B 1.25±0.2 1.60±0.2 C 1.0Max 1.0Max D 0.5±0.3 0.5±0.3
