SCD03015

SMD Unshielded Power Inductors

SCD03015 Features

* RoHS compliant

* High saturation open type wire wound power inductor

* Suitable for large currents

* Ideal for DC

* DC converter applications

* Available on tape and reel for auto surface mounting Product Identification Various high power surface mountable type inducto

SCD03015 Datasheet (260.81 KB)

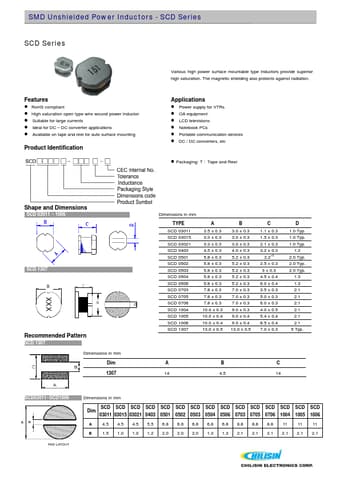

Preview of SCD03015 PDF

Datasheet Details

Part number:

SCD03015

Manufacturer:

Chilisin

File Size:

260.81 KB

Description:

Smd unshielded power inductors.
