CST-5234S

Triad Digit Display

CST-5234S Features

* 1. 0.52 inch (13.2mm) digit height. 2. Case mold type. 3. RoHS compliant. 4. Low power consumption. 5. Easy mounting on P.C. board or socket. Device Selection Guide Chip Material AlGaAs AlGaAs Emitted Color Super Bright Red Super Bright Red Part No. CST-5234S CST-5235S Description Common Anode Co

CST-5234S General Description

: 0.52 Inch Triad Digits Display CST-5234: Common Anode CST-5235: Common Cathode Emitting Color Super Bright Red CUSTOMER APPROVED SIGNATURES APPROVED BY CHECKED BY PREPARED BY CHINA SEMICONDUCTOR CORPORATION Address:2FL. NO.909,Chung-Cheng Road, Chung-Ho City Taipei Hsien,Taiwan. Tel:886-2-222.

CST-5234S Datasheet (230.76 KB)

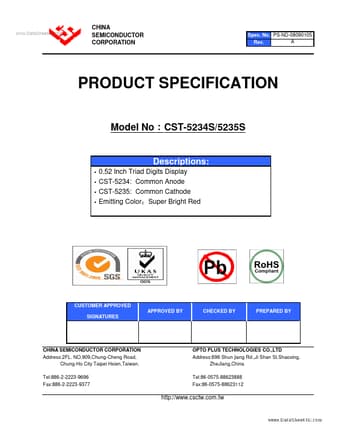

Preview of CST-5234S PDF

Datasheet Details

Part number:

CST-5234S

Manufacturer:

China Semiconductor Corporation

File Size:

230.76 KB

Description:

Triad digit display.
