FM1660, FM1660-ChipSourceTek - High power SP10T Switch

FM1660 Description

FM1660 High power SP10T Switch with MIPI for TX/RX .
Multi-Band operation 700MHz to 2700MHz The FM1660 is a low loss, high isolation high power. RFFE 2.

FM1660 Features

* Excellent insertion loss: 0.85dB @2.7GHz

FM1660 Applications

* 2G/3G/4G antenna transmitting and receiving

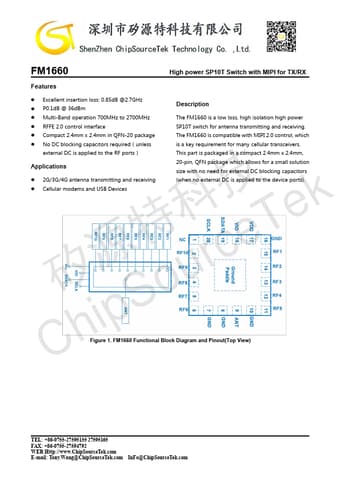

* Cellular modems and USB Devices size with no need for external DC blocking capacitors (when no external DC is applied to the device ports). ChipSourceTek Figure 1. FM1660 Functional Block Diagram and Pinout(Top View) TEL: +86-0755-27595155 2

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FM1660, FM1660-ChipSourceTek. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FM1660, FM1660-ChipSourceTek
Manufacturer
ChipSourceTek
File Size
1.18 MB
Datasheet
FM1660-ChipSourceTek_removed.pdf
Description
High power SP10T Switch
Note
This datasheet PDF includes multiple part numbers: FM1660, FM1660-ChipSourceTek.
Please refer to the document for exact specifications by model.
