LP6460, 16V/2A Synchronous Step-down Converter

500KHz, 16V/2ASynchronousStep-down Converter LP6460 General .
LP6460 Features The LP6460 contains an independent. Input Voltage Range: 4. Output.

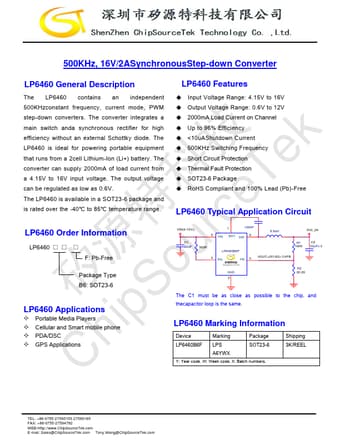

datasheet Preview Page 1 from Datasheet4u.com

LP6460-ChipSourceTek.pdf

LP6460 Datasheet Preview — Preview of LP6460 PDF

Datasheet Details

Part number:

LP6460

Manufacturer:

ChipSourceTek

File Size:

1.78 MB

Description:

16V/2A Synchronous Step-down Converter

Features

* The LP6460 contains an independent
* Input Voltage Range: 4.15V to 16V 500KHzconstant frequency, current mode, PWM
* Output Voltage Range: 0.6V to 12V step-down converters. The converter integrates a main switch anda synchronous rectifier for high efficiency without an external Schottky d

Applications

* ip
* Portable Media Players
* Cellular and Smart mobile phone
* PDA/DSC Ch
* GPS Applications VIN(9-12V)) C1 22uF 5 500K 4 1 100nF VIN BST SW 6 TTTT LP6460B6F 6.8uH 3V3_2A R1 100K C2 22uFx 2 EN FB 3 VOUT=(R1/R2+1)VFB GND 2 R2 22.2K The C1 must be as close as possible t
