CA-IS3640

Reinforced Digital Isolators

Chipanalog

CA-IS3640 Features

* Integrated High‐efficiency DC‐DC Converter withon‐ chip Transformer

* Regulated output options: 3.3 V or 5.0 V

* Up to 650mW output power

* Soft‐start to limit inrush current and overshoot

* Overload and short‐circuit protection

* Thermal shutdown

* Low emissions

CA-IS3640 General Description

The CA‐IS36xx family integrated signal and power isolation devices simplify system design and reduce board area. These devices are high‐performance, dual‐channel and four‐channel, unidirectional reinforced digital isolators with up to 5kVRMS isolation rating and ultra‐fast data rate. The integrated .

CA-IS3640 Datasheet (1.01 MB)

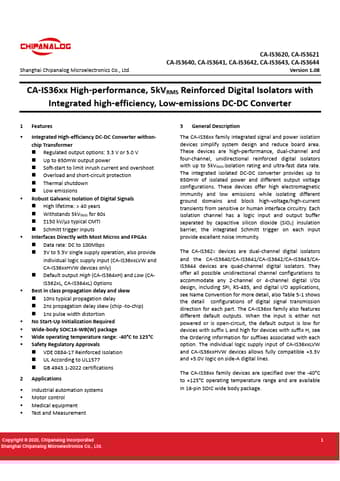

CA-IS3640 Datasheet Preview — Preview of CA-IS3640 PDF

Datasheet Details

Part number:

CA-IS3640

Manufacturer:

Chipanalog

File Size:

1.01 MB

Description:

Reinforced digital isolators.
Shanghai Chipanalog Microelectronics Co., Ltd. CA‐IS3620, CA‐IS3621 CA‐IS3640, CA‐IS3641, CA‐IS3642, CA‐IS3643, CA‐IS3644 Version 1.08 CA‐IS36xx Hig.
