CL2822 Dual Low-Voltage Power Amplifier

CL2822 Description

Dual Low-Voltage Power Amplifier Preliminary Datasheet CL2822 * .
The CL2822 is a monolithic integrated circuit in 8 lead Minidip package.

CL2822 Features

* Supply Voltage Down to 1.8V
* Low Cross Over Distortion
* Low Quiescent Current
* Bridge or Stereo Configuration

CL2822 Applications

* z Portable radio cassette z Portable speaker Figure 1. Package Types of CL2822 Oct. 2007 Rev 1.1 ShangHai Chipland Micro-electronics technology co. , ltd 1 Dual Low-Voltage Power Amplifier
* Function Block Preliminary Datasheet CL2822 Figure 2. Functional Block Diagram of CL2822
* Pin

📥 Download Datasheet

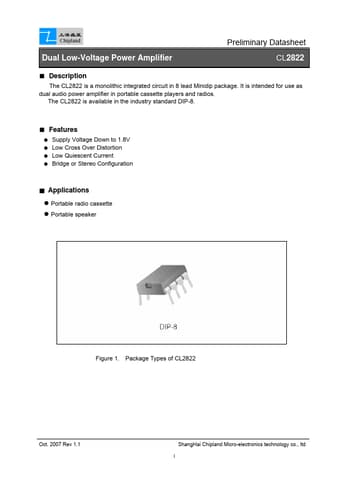

CL2822 Datasheet Preview — Preview of CL2822 PDF

Datasheet Details

Part number: CL2822
Manufacturer: Chipland
File Size: 161.03 KB
Datasheet: CL2822-Chipland.pdf
Description: Dual Low-Voltage Power Amplifier
