PN8386F

Low Standby-Power Primary-Side Converter

PN8386F Features

* Output Features Vo 100% 60% ±5% ±5%

* Internal 650 V avalanche-rugged smart power VDMOSFET

* Internal HV Start-up Circuit, Standby power < 50mW (230VAC)

* Multi-mode technique

* ±5% CC/CV Regulation at Universal AC input

* Primary-side Sensing and Regulation without TL431 an

PN8386F General Description

The PN8386F consists of a Low Standby-Power Primary-Side controller and a 650V avalanche-rugged smart power VDMOSFET, specifically designed for a high performance AC/DC charger or adapter with minimal external components. PN8386F operates in primary-side sensing and regulation, so opto-coupler and T.

PN8386F Datasheet (483.04 KB)

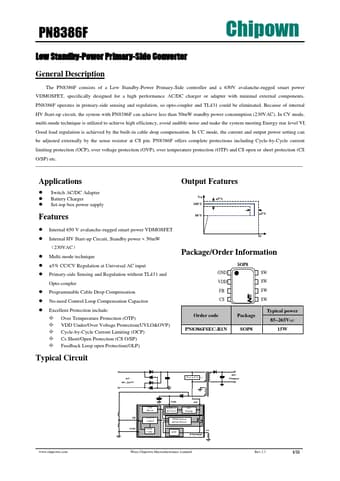

Preview of PN8386F PDF
