CW24C16 - (CW24C02 - CW24C16) I2C Bus EEPROM

This page provides the datasheet information for the CW24C16, a member of the CW24C02 (CW24C02 - CW24C16) I2C Bus EEPROM family.

Datasheet Summary

Description

The CW24C02/04/08/16 is Electrically Erasable PROM.

The device is organized as one block of 256/512/1024/2048 x 8-bit memory with 2-wire serial interface.

Low-voltage design permits operation down to 1.8V, with standby and active currents of only 1μA and 1mA respectively.

Features

  • A1 A2 C04 7 6.
  • Wide Voltage Operation VCC= 1.8V to 5.5V GND 5 4 SDA.
  • Low-power technology - 1mA Active Current Typical - 1μA Standby Current Typical VCC NC 8 1.
  • Internally Organized: WP NC 7 2 - CW24C02, 256 X 8 (2K bits) C08 SCL A2 6 3 - CW24C04, 512 X 8 (4K bits) SDA GND 5 4 - CW24C08, 1024 X 8 (8K bits) - CW24C16, 2048 X 8 (16K bits).
  • Two-wire Serial Interface, Fully I2C Bus Compatible NC 8 VCC 1.
  • 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) Compatibility NC 7 WP 2.

📥 Download Datasheet

Datasheet preview – CW24C16

Datasheet Details

Part number CW24C16
Manufacturer ChipsWinner
File Size 275.91 KB
Description (CW24C02 - CW24C16) I2C Bus EEPROM
Datasheet download datasheet CW24C16 Datasheet
Additional preview pages of the CW24C16 datasheet.

📁 Similar Datasheet

  • CW201212 - High Q Chip Inductors (Bourns)
  • CW2013 - Low-Cost 1s Fuel Gauge (Cellwise)
  • CW2015 - Low-Cost Fuel Gauge (Cellwise)
  • CW2017 - Lithium-ion Fuel Gauge (Cellwise)
  • CW20P - CW20P-Type CW Tunable/ Wavelength-Stabilized Laser Module (Agere Systems)
  • CW217 - Monolithic integrated voltage regulator (Beijing Semiconductor)
  • CW217L - Monolithic integrated voltage regulator (Beijing Semiconductor)
  • CW22P21 - CW20P-Type CW Tunable/ Wavelength-Stabilized Laser Module (Agere Systems)
  • CW22P31 - CW20P-Type CW Tunable/ Wavelength-Stabilized Laser Module (Agere Systems)
  • CW22P41 - CW20P-Type CW Tunable/ Wavelength-Stabilized Laser Module (Agere Systems)
Other Datasheets by ChipsWinner
  • CW24C128 - 128Kbit and 256Kbit Serial I2C Bus EEPROM
  • CW24C02 - (CW24C02 - CW24C16) I2C Bus EEPROM
  • CW24C04 - (CW24C02 - CW24C16) I2C Bus EEPROM
  • CW24C08 - (CW24C02 - CW24C16) I2C Bus EEPROM
  • CW24C256 - 128Kbit and 256Kbit Serial I2C Bus EEPROM

Full PDF Text Transcription

Click to expand full text

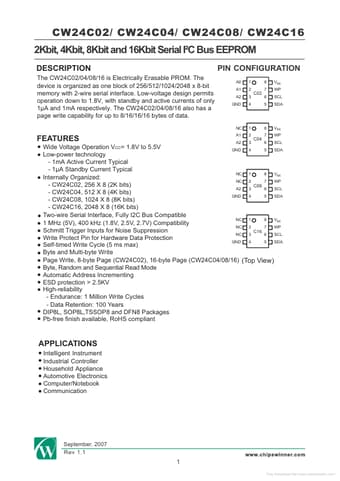

CW24C02/ CW24C04/ CW24C08/ CW24C16 2Kbit, 4Kbit, 8Kbit and 16Kbit Serial I²C Bus EEPROM DESCRIPTION The CW24C02/04/08/16 is Electrically Erasable PROM. The device is organized as one block of 256/512/1024/2048 x 8-bit memory with 2-wire serial interface. Low-voltage design permits operation down to 1.8V, with standby and active currents of only 1μA and 1mA respectively. The CW24C02/04/08/16 also has a page write capability for up to 8/16/16/16 bytes of data. PIN CONFIGURATION A0 A1 A2 GND 1 2 3 4 8 VCC WP SCL SDA C02 7 6 5 NC 1 2 3 8 VCC WP SCL FEATURES A1 A2 C04 7 6 ● Wide Voltage Operation VCC= 1.8V to 5.
