CRD42528

Reference Design

CRD42528 Features

* Supports 4 digital S/PDIF (IEC60958/IEC61937) inputs 8 Discrete analog inputs using the CS42528 + 3 external CS5351 ADCs for 8 analog channels of input at 48 kHz and 96 kHz 2 Channel upsampling supported 8 Discrete analog outputs from the CS42528 2 Digital S/PDIF (IEC60958/IEC61937) outputs using th

CRD42528 General Description

The CRD42528 is a reference design for the CS49300 DSP family and the CS42528 CODEC. It supports up to 8 channels of analog input at 48 and 96 kHz, or 2 channels of analog input at 192 kHz. One of four digital S/PDIF inputs may be selected. Additionally, up to 2 channels of digital S/PDIF output and.

CRD42528 Datasheet (1.83 MB)

Preview of CRD42528 PDF

Datasheet Details

Part number:

CRD42528

Manufacturer:

Cirrus Logic

File Size:

1.83 MB

Description:

Reference design.

📁 Related Datasheet

CRD4202-1 AC 97 Six Channel CNR Audio Reference Design (Cirrus Logic)

CRD4202-2 AC 97 Six Channel CNR Audio Reference Design (Cirrus Logic)

CRD4205-1 Notebook Audio Docking Station Example (Cirrus Logic)

CRD4205-2 PC Audio Docking Station Companion Board (Cirrus Logic)

CRD4299-1 AC 97 AMR Reference Design (Cirrus Logic)

CRD42L51 Stereo CODEC (Cirrus Logic)

CRD42L52 Stereo CODEC w/Headphone & Speaker Amps (Cirrus Logic)

CRD4412 2 x 15 W Digital Power Stage Reference Design (Cirrus Logic)

CRD44130-FB 20 W x 2 + 40 W x 1 PWM Amplifier Reference Design (Cirrus Logic)

CRD44600 6-Channel Digital Amplifier Controller (Cirrus Logic)

TAGS

CRD42528 Reference Design Cirrus Logic

Image Gallery

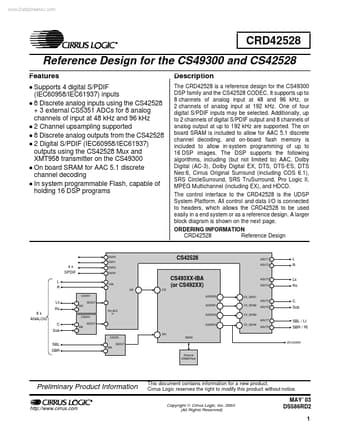

CRD42528 Datasheet Preview Page 2 CRD42528 Datasheet Preview Page 3
