CS4390 - 24-Bit Stereo D/A Converter

Description

The CS4390 is a complete stereo digital-to-analog output system.

In addition to the traditional D/A function, the CS4390 includes a digital interpolation filter followed by an 128X oversampled delta-sigma modulator.

Features

  • l 24-Bit Conversion l 115 dB Signal-to-Noise-Ratio (EIAJ) l Complete Stereo DAC System.
  • 128X Interpolation Filter.
  • Delta-Sigma DAC.
  • Analog Post Filter l 106 dB Dynamic Range l Low Clock Jitter Sensitivity l Filtered Line-Level Outputs.
  • Linear Phase Filtering.
  • Zero Phase Error Between Channels l Adjustable System Sampling Rates.
  • including 32 kHz, 44.1 kHz & 48 kHz l Digital De-emphasis for 32 kHz, 44.1 kHz, & 48 kHz l Pin-compatible with the C.

📥 Download Datasheet

Datasheet preview – CS4390

Datasheet Details

Part number CS4390
Manufacturer Cirrus Logic
File Size 501.04 KB
Description 24-Bit Stereo D/A Converter
Datasheet download datasheet CS4390 Datasheet
Additional preview pages of the CS4390 datasheet.

📁 Similar Datasheet

  • CS4302U - Ultra-fast High Voltage Diodes (High Voltage Power Solutions)
  • CS4303 - D/A Converter (Crystal Semiconductor)
  • CS4303U - Ultra-fast High Voltage Diodes (High Voltage Power Solutions)
  • CS4304U - Ultra-fast High Voltage Diodes (High Voltage Power Solutions)
  • CS4308U - Ultra-fast High Voltage Diodes (High Voltage Power Solutions)
  • CS4309G - (CS4300G Series) Rectifier Diode (High Voltage Power Solutions)
  • CS4310U - Ultra-fast High Voltage Diodes (High Voltage Power Solutions)
  • CS4312G - Rectifier Diode (High Voltage Power Solutions)
  • CS4312U - Ultra-fast High Voltage Diodes (High Voltage Power Solutions)
  • CS4314U - Ultra-fast High Voltage Diodes (High Voltage Power Solutions)
Other Datasheets by Cirrus Logic
  • CS4391 - 24-Bit / 192 kHz Stereo DAC
  • CS4391A - 192 kHz Stereo DAC
  • CS4392 - 24-Bit / 192kHz Stereo DAC
  • CS4396 - 24-Bit / 192 kHz D/A Converter
  • CS4397 - 24-Bit / Multi-Standard D/A Converter
  • CS4398 - 120dB / 192kHz Multi-Bit DAC
  • CS4302P - High Performance Stereo Audio DAC
  • CS4304P - High Performance Multichannel Audio DAC

Full PDF Text Transcription

Click to expand full text

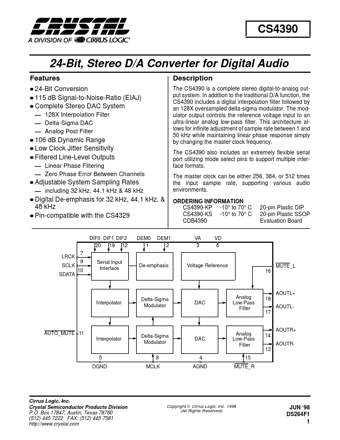

CS4390 24-Bit, Stereo D/A Converter for Digital Audio Features l 24-Bit Conversion l 115 dB Signal-to-Noise-Ratio (EIAJ) l Complete Stereo DAC System — 128X Interpolation Filter — Delta-Sigma DAC — Analog Post Filter l 106 dB Dynamic Range l Low Clock Jitter Sensitivity l Filtered Line-Level Outputs — Linear Phase Filtering — Zero Phase Error Between Channels l Adjustable System Sampling Rates — including 32 kHz, 44.1 kHz & 48 kHz l Digital De-emphasis for 32 kHz, 44.1 kHz, & 48 kHz l Pin-compatible with the CS4329 I Description The CS4390 is a complete stereo digital-to-analog output system. In addition to the traditional D/A function, the CS4390 includes a digital interpolation filter followed by an 128X oversampled delta-sigma modulator.
