EP9301 - Entry-level ARM9 System-on-chip Processor

Cirrus Logic

📥 Download Datasheet

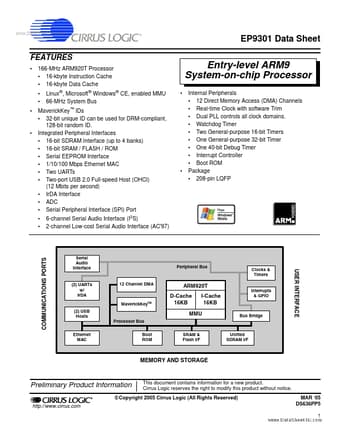

EP9301 Datasheet Preview — Preview of EP9301 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: EP9301
Manufacturer: Cirrus Logic
File Size: 362.02 KB
Datasheet: EP9301_CirrusLogic.pdf
Description: Entry-level ARM9 System-on-chip Processor

EP9301 Product details

Features

166-MHz ARM920T Processor.
16-kbyte Instruction Cache.
16-kbyte Data Cache.
Linux®, Microsoft® Windows® CE, enabled MMU 66-MHz System Bus.
Entry-level ARM9 System-on-chip Processor Internal Peripherals.
12 Direct Memory Access (DMA) Channels.
Real-time Clock with software Trim.
Dual PLL controls all clock domains.
Watchdog Timer.
Two General-purpose 16-bit Timers.
One General.
