WM8523 - 24-bit 192kHz Stereo DAC

WM8523 Description

WM8523 24-bit 192kHz Stereo DAC with 2Vrms Ground Referenced Line Output .
The WM8523 is a stereo DAC with integral charge pump and software control interface.

WM8523 Features

* ground-referenced outputs and the use of a DC servo to eliminate the need for line driving coupling capacitors and effectively eliminate power on pops and clicks. The device is controlled and configured either via the I2C/SPI compliant serial control interface or a hardware control interface. The de

WM8523 Applications

* Consumer digital audio applications requiring 2Vrms output  Set Top Box  Digital TV  DVD Players  Games Consoles  A/V Receivers SDOUT/DEEMPH SDA/AIFMODE0 SCLK/AIFMODE1 CS/MU TE CIFM OD E ZFLAG MC LK BCLK LRCLK DACD AT CONTROL INTERFACE WM8523 DIGITAL AUDIO INTERFACE DIGITAL FIL TER

📥 Download Datasheet

Preview of WM8523 PDF

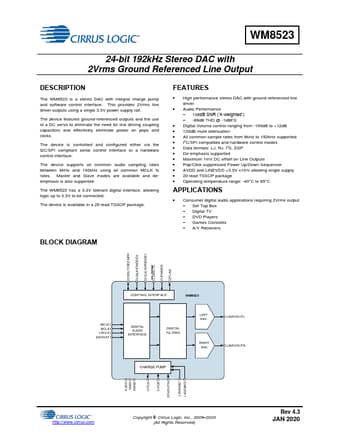

datasheet Preview Page 2 datasheet Preview Page 3
