M-980-02P, 3V/5V General Purpose Call Progress Tone Detector

M-980-02 3V/5V General Purpose Call Progress Tone Detector .
The M-980-02 is an integrated circuit tone detector for general purpose use in automatic following of switched telephone calls.

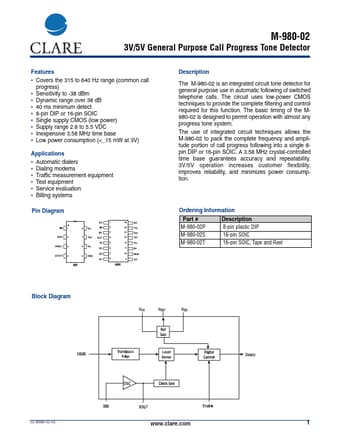

datasheet Preview Page 1 from Datasheet4u.com

M-980-02P_ClareInc..pdf

M-980-02P Datasheet Preview — Preview of M-980-02P PDF

Datasheet Details

Part number:

M-980-02P

Manufacturer:

Clare Inc.

File Size:

181.08 KB

Description:

3V/5V General Purpose Call Progress Tone Detector

Features

* Covers the 315 to 640 Hz range (common call progress)
* Sensitivity to -38 dBm
* Dynamic range over 38 dB
* 40 ms minimum detect
* 8-pin DIP or 16-pin SOIC
* Single supply CMOS (low power)
* Supply range 2.8 to 5.5 VDC
* Inexpensive 3

Applications

* Automatic dialers
* Dialing modems
* Traffic measurement equipment
* Test equipment
* Service evaluation
