PAA150 - DUAL POLE OptoMOS Relay

Datasheet Summary

Description

PAA150 is a 250V, 250mA, 7Ω 2-Form-A relay.

This performance leader provides a more cost effective solution where very low on-resistance is required but enhanced peak load voltage is not required.

Features

Small 8 Pin DIP Package.
Low Drive Power Requirements (TTL/CMOS Compatible).
No Moving Parts.
High Reliability.
Arc-Free With No Snubbing Circuits.
3750VRMS Input/Output Isolation.
FCC Compatible.
VDE Compatible.
No EMI/RFI Generation.
Machine Insertable, Wave Solderable.
Surface Mount and Tape & Reel Versions Available.

Clare Inc.

📥 Download Datasheet

Datasheet Details

Part number	PAA150
Manufacturer	Clare Inc.
File Size	111.00 KB
Description	DUAL POLE OptoMOS Relay
Datasheet	PAA150 Datasheet

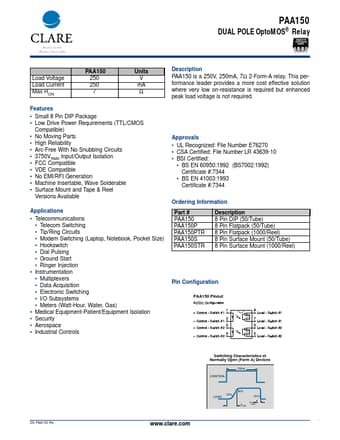

Additional preview pages of the PAA150 datasheet.

📁 Similar Datasheet

PAA150 - 250mA Dual Single-Pole Normally Open Relays (IXYS)
PAA150P - 250mA Dual Single-Pole Normally Open Relays (IXYS)
PAA150S - 250mA Dual Single-Pole Normally Open Relays (IXYS)
PAA110 - Normally Open OptoMOS Relay (IXYS)
PAA127 - Normally Open OptoMOS Relay (IXYS)
PAA132 - Normally Open OptoMOS Relays (IXYS)
PAA190 - Normally Open OptoMOS Relays (IXYS)
PAA191 - Normally Open OptoMOS Relays (IXYS)
PAA191S - Normally Open OptoMOS Relays (IXYS)
PAA193 - Normally Open OptoMOS Relays (IXYS)

Other Datasheets by Clare Inc.

PAA110 - Single Pole OptoMOS Relays
PAA110L - DUAL POLE OptoMOS Relay
PAA140 - Single Pole OptoMOS Relays

Full PDF Text Transcription

Click to expand full text

PAA150 DUAL POLE OptoMOS® Relay Load Voltage Load Current Max RON PAA150 250 250 7 Units V mA Ω Description PAA150 is a 250V, 250mA, 7Ω 2-Form-A relay. This performance leader provides a more cost effective solution where very low on-resistance is required but enhanced peak load voltage is not required.
