PBA150 - DUAL POLE OptoMOS Relay

Description

PBA150 is a 250V, 250mA, 7Ω independent 1-Form-A and 1-Form-B relay.

This performance leader provides very low on-resistance in applications requiring both a Form-A and Form-B relay.

Features

  • Small 8 Pin DIP Package.
  • Low Drive Power Requirements (TTL/CMOS Compatible).
  • No Moving Parts.
  • High Reliability.
  • Arc-Free With No Snubbing Circuits.
  • 3750VRMS Input/Output Isolation.
  • FCC Compatible.
  • VDE Compatible.
  • No EMI/RFI Generation.
  • Machine Insertable, Wave Solderable.
  • Surface Mount and Tape & Reel Versions Available Approvals.
  • UL Recognized: File Number E76270.
  • CSA Certified.

📥 Download Datasheet

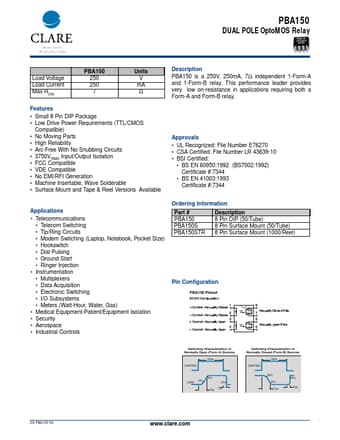

Datasheet preview – PBA150

Datasheet Details

Part number PBA150
Manufacturer Clare Inc.
File Size 91.00 KB
Description DUAL POLE OptoMOS Relay
Datasheet download datasheet PBA150 Datasheet
Additional preview pages of the PBA150 datasheet.

📁 Similar Datasheet

  • PBA1500F - PBA1500F (Total Power International)
  • PBA100F - PBA100F (Total Power International)
  • PBA10F - AC-DC Power Supplies Enclosed type (COSEL)
  • PBA10F-12 - AC-DC Power Supplies Enclosed type (COSEL)
  • PBA10F-24 - AC-DC Power Supplies Enclosed type (COSEL)
  • PBA10F-5 - AC-DC Power Supplies Enclosed type (COSEL)
  • PBA02 - Timers Delay on Release (Carlo Gavazzi)
  • PBA2 - Programmable Gain and Bias Amplifier Low noise I/V amplifier (ETC)
  • PBA300F - PBA300F (Total Power International)
  • PBA31301 - Bluetooth Radio Transceiver (Infineon Technologies AG)
Other Datasheets by Clare Inc.

Full PDF Text Transcription

Click to expand full text
PBA150 DUAL POLE OptoMOS Relay Load Voltage Load Current Max RON PBA150 250 250 7 Units V mA Ω Description PBA150 is a 250V, 250mA, 7Ω independent 1-Form-A and 1-Form-B relay. This performance leader provides very low on-resistance in applications requiring both a Form-A and Form-B relay.
